A reliable pole structure plays an important role in modern infrastructure, from mobile communication networks to street lighting and power distribution. As cities expand and the demand for efficient land use increases, monopole structures have become a practical choice for projects that require strength, stability and a relatively small installation footprint.
A monopole is a single vertical structural column designed to support equipment, cables, antennas, lighting fixtures or other loads. Unlike traditional lattice towers, which use several interconnected steel members, a monopole typically relies on a central shaft engineered to withstand wind pressure, equipment loads and environmental conditions.
Understanding monopole pole design involves more than selecting a suitable height or material. Structural engineering, foundation design, corrosion protection, installation requirements and long-term maintenance all influence performance. This guide explores the materials, applications and key structural features that help determine whether a monopole is suitable for a particular project.
What Is a Monopole Structure?
A monopole is a freestanding structure built around one primary vertical shaft. It is commonly manufactured from steel, although other materials may be used for specific applications. Its dimensions, wall thickness, foundation and supporting components are selected according to the intended use and expected loads.
Monopoles are widely used in telecommunications, outdoor lighting, electrical infrastructure, surveillance systems and selected industrial installations.
Their defining characteristics include:
- Compact footprint: Requires less ground space than many conventional tower structures.
- Streamlined design: A single shaft can provide a clean, unobtrusive appearance.
- Engineered load capacity: Designed to support specified equipment and withstand relevant environmental forces.
- Adaptable configurations: Available in different heights, shaft shapes, mounting arrangements and finishes.
- Planned maintenance: Components and protective coatings can be inspected to help maintain structural performance.
However, a compact design does not automatically make a monopole suitable for every site. Its capacity must be verified through structural calculations and an assessment of actual site conditions.
Materials Used in Monopole Pole Design
Material selection directly affects the strength, durability, weight and maintenance requirements of a monopole. Engineers consider the intended application, loading conditions, exposure to moisture and chemicals, transportation limitations and overall project requirements before choosing a material.
1. Structural Steel
Structural steel is one of the most widely used materials for monopole manufacturing because of its strength, stiffness and suitability for engineered fabrication.
Steel shafts can be manufactured in tapered or sectional configurations, depending on the required height and design. The material can also support welded or bolted connections for mounting brackets, access components and other equipment.
Important considerations include:
- Steel grade and specified mechanical properties
- Shaft diameter and wall thickness
- Weld quality and connection detailing
- Resistance to bending and torsional forces
- Corrosion protection requirements
Steel offers considerable design flexibility, but its performance depends on correct fabrication, connection design and ongoing protection against corrosion.
2. Galvanized Steel
Galvanized steel is structural steel protected with a zinc coating. Hot-dip galvanizing is commonly used for outdoor steel structures because it helps protect the underlying metal from corrosion.
This protection is especially relevant for poles exposed to rain, humidity, industrial pollutants or coastal conditions. The coating specification should suit the environment, and damaged areas should be assessed and repaired using appropriate procedures.
Galvanizing does not eliminate the need for inspection. Cut edges, connection details, damaged coatings and locations where water can accumulate require particular attention.
3. Concrete for Foundations
Although the main shaft is often made from steel, concrete is an essential material in many monopole installations. Reinforced concrete foundations transfer structural loads into the ground and help resist overturning, sliding and other forces.
Foundation design depends on factors such as:
- Soil strength and ground conditions
- Pole height and geometry
- Wind loads and attached equipment
- Groundwater conditions
- Anchor bolt arrangement and embedment
- Applicable structural and geotechnical requirements
A foundation should never be selected solely from the pole’s height. The supporting ground and calculated design loads must be evaluated together.
4. Aluminium and Other Materials
Aluminium may be suitable for certain lightweight lighting poles or applications where corrosion resistance and reduced weight are important. However, its strength, stiffness, connection behaviour and suitability for the intended loads must be assessed carefully.
Composite materials may also be considered for specialised applications. Their use depends on structural requirements, environmental exposure, available manufacturing methods and project specifications.
For heavy telecommunications equipment or demanding structural applications, material selection should be based on engineering calculations rather than appearance or purchase price alone.
Key Structural Features of a Monopole
The structural configuration determines how a monopole carries loads and transfers them safely to the ground. Several components work together to provide stability.
1. Tapered Shaft Design
Many monopoles use a tapered shaft that is wider near the base and narrower toward the top. This shape can provide an efficient distribution of material because bending demands are often greater near the base.
The shaft may be manufactured as a polygonal or circular section. The final geometry depends on structural requirements, fabrication capabilities, equipment mounting needs and aesthetic considerations.
2. Base Plate and Anchor Bolts
The base plate connects the pole to its foundation. Anchor bolts secure the assembly and transfer forces between the steel shaft and the concrete foundation.
These components must be designed for the expected bending moments, shear forces, axial loads and other relevant actions. Accurate bolt positioning, suitable tightening procedures and proper detailing are essential during installation.
3. Foundation and Ground Support
The foundation provides the structural connection between the monopole and the ground. Depending on the site and design, it may use a reinforced concrete block, a drilled shaft or another engineered foundation arrangement.
A geotechnical assessment helps establish the ground’s capacity and identify conditions such as weak soil, groundwater or nearby underground services. These factors can significantly affect the foundation dimensions and construction method.
4. Mounting Brackets and Attachments
Monopoles may carry antennas, lighting fixtures, cameras, cables, electrical equipment or other attachments. Each attachment adds weight and may change the wind forces acting on the structure.
For example, telecommunications antennas can increase both the projected wind area and the torsional demands on the shaft. Future equipment additions should therefore be evaluated before installation rather than assumed to fit within the original design capacity.
5. Corrosion Protection and Drainage
Protective coatings extend the service life of exposed metal components by reducing corrosion. Suitable drainage and detailing also help prevent water from collecting around joints, base plates and other vulnerable locations.
Protective measures may include galvanizing, compatible paint systems and properly detailed connections. The correct solution depends on the environmental exposure and the maintenance plan.
Common Applications of Monopole Structures
Monopoles are used across several infrastructure sectors because they can support equipment without requiring the broad footprint of many multi-member towers.
Telecommunications and Mobile Networks

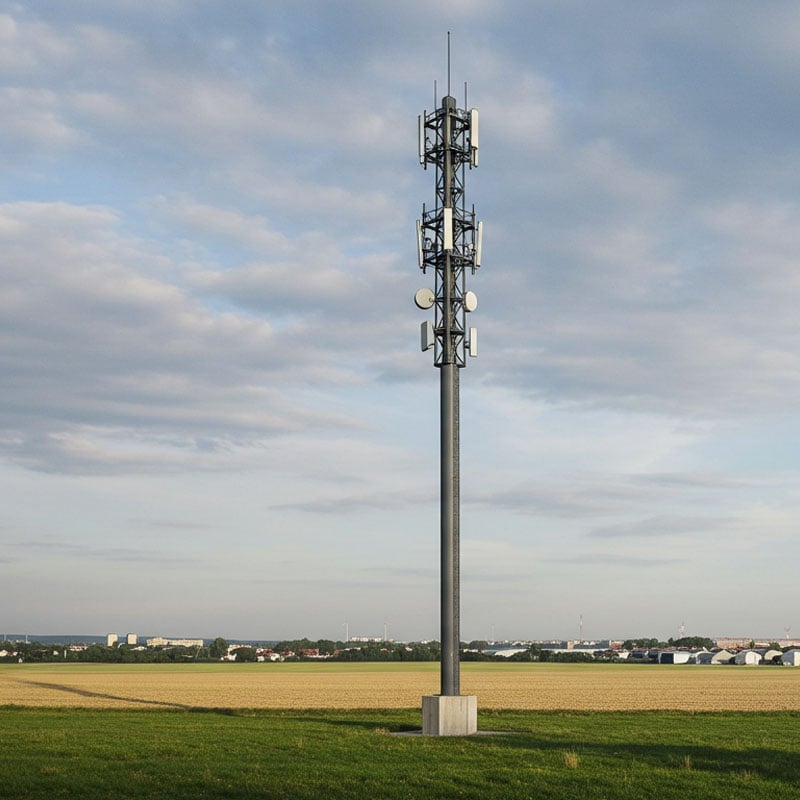

Telecommunication monopoles support cellular antennas, radio equipment and related network infrastructure. They are often considered for urban areas, commercial properties and sites where ground space is limited.
Designers must account for antenna quantity, mounting elevation, wind exposure, cable routing and the possibility of future network upgrades.
Street and Highway Lighting
Lighting monopoles support luminaires used on roads, highways, parking areas and public spaces. Their height and configuration are selected according to lighting requirements, roadway geometry, wind conditions and local design standards.
Proper positioning and foundation design help maintain stability while allowing the fixtures to provide the intended illumination.
Power Distribution and Electrical Infrastructure
Certain monopole designs are used to support electrical conductors and related equipment. These structures must be engineered for the relevant electrical clearances, conductor tensions, wind loads and, where applicable, other environmental or operational loading conditions.
Electrical safety requirements and access restrictions are also important during installation and maintenance.
Surveillance and Smart-City Systems
Monopoles can support security cameras, traffic monitoring equipment, environmental sensors and communication devices. They provide an elevated mounting position while keeping the supporting structure relatively compact.
Designers should consider equipment weight, cable access, vibration, wind loading and the accessibility needed for servicing.
How to Select the Right Monopole Design
Choosing a suitable structure requires a clear understanding of the project rather than simply comparing pole heights and prices.
The following steps can help guide the selection process.
- Define the application. Identify the equipment to be supported, its weight, mounting height and operational requirements.
- Assess the site. Review wind exposure, terrain, soil conditions, corrosion risks and nearby structures.
- Determine the required height. Consider coverage, lighting, electrical clearances, visibility and access constraints.
- Verify structural capacity. Have qualified engineers assess bending, buckling, torsion, connections, deflection and foundation performance as applicable.
- Check applicable standards. Confirm the relevant building regulations, loading standards, electrical requirements and project specifications.
- Plan transportation and installation. Consider pole sections, lifting equipment, access roads, crane requirements and assembly procedures.
- Evaluate lifecycle costs. Compare initial cost with installation, inspection, corrosion protection, repairs and potential future modifications.
These steps help project teams balance technical performance, safety, practicality and long-term value.
Installation and Maintenance Considerations
Even a well-designed monopole can experience problems if installation and maintenance are neglected. Construction teams should verify foundation dimensions, concrete strength requirements, anchor bolt positioning and shaft alignment before erecting the structure.
During installation, lifting operations should follow an approved method statement and site-specific safety procedures. Connections must be assembled according to the design documentation, and the completed structure should be checked for alignment and any visible damage.
Routine inspection should focus on:
- Corrosion, coating damage and exposed steel
- Cracks or deterioration in concrete foundations
- Loose bolts, damaged welds or connection movement
- Unauthorised attachments or equipment changes
- Unusual bending, deformation or signs of settlement
- Cable routing, access fittings and drainage conditions
Inspection frequency should reflect the structure’s importance, exposure, condition and applicable requirements. Any significant damage or suspected structural movement should be evaluated by a qualified professional before further use.
The Role of Experienced Infrastructure Partners
Monopole projects involve several connected decisions, from material selection and fabrication to foundation planning, erection and maintenance. Coordinating these elements helps ensure that the finished structure meets its intended operational and safety requirements.
Krishna Urja Constructions LLP is a relevant point of contact for readers exploring construction and infrastructure solutions. When evaluating a potential project partner, buyers should review the provider’s experience with comparable structures, engineering coordination, fabrication quality controls, documentation and ability to meet project specifications.
It is also useful to clarify who is responsible for structural calculations, foundation design, installation supervision, quality checks and future maintenance. Clear responsibilities reduce uncertainty and help keep the project aligned with its technical requirements.
Frequently Asked Questions
1. What is a monopole used for?
A monopole is used to support structures and equipment such as telecommunications antennas, streetlights, surveillance cameras and certain electrical installations. Its compact footprint makes it useful where ground space is limited.
2. Which material is best for a monopole pole?
Structural steel is a common choice because of its strength and design flexibility. Galvanized steel is often suitable for outdoor installations because the zinc coating helps protect against corrosion. The best material depends on the loads, environment, required service life and project specifications.
3. How is the height of a monopole determined?
The height depends on its intended function, equipment mounting requirements, wind exposure, ground conditions and applicable regulations. Engineers must also consider shaft dimensions, deflection limits and foundation capacity when determining a suitable height.
4. Does a monopole require a concrete foundation?
Many steel monopoles use reinforced concrete foundations, but the exact foundation type depends on the structure and site conditions. Soil strength, groundwater, wind loads and overturning forces must be considered before the foundation is designed.
5. How can the service life of a monopole be improved?
Appropriate corrosion protection, correct installation, routine inspections and timely repairs can help extend a monopole’s service life. Unauthorised equipment additions and neglected foundation or connection problems should be avoided because they can affect structural performance.
